Honeywell 3 Way Mixing Control Valve

Enquire Now

Description:

Honeywell rotary valves provide water temperature control in heating and air conditioning applications. These valves are designed for accurate mixing control of supply water temperature in heating and air conditioning systems. Its sturdy construction ensures a long and reliable operating life when used in combination with M6061/VMM and M7061/VRM actuators.

FEATURES
• Chrome-plated plug for long life.
• Optimized characteristic for supply water temperature control
• Protected against corrosion and blocking
• Reliable mounting for electrical actuators
• Clear position indicator
• Wide range of flow rates with suitable actuators
Description
FEATURES
• Chrome-plated plug for long life.
• Optimized characteristic for supply water temperature control
• Protected against corrosion and blocking
• Reliable mounting for electrical actuators
• Clear position indicator
• Wide range of flow rates with suitable actuators
SPECIFICATIONS
Nominal static pressure:6 bar, 600kPa
Maximum pressure drop: depending on type (see section “Specification and Order Number” on page 2)
Leakage rate: 1% of kvs
Ports: Internal threads / flange in accordance with DIN EN 1092-2 depending on type (see section “Specification and Order Number” on page 2)
Angle of rotation :90 °
Internal threads: 8 windings long
Packing: Double o-ring sealing
Material body: Cast iron
Material inner parts: Chrome-plated cast iron
Medium: Heating water according to VDI 2035 (oxygen concentration less than 0.2 g/m3 , pH 8…9.5), glycol-water
mixtures (max. 50% glycol)
Water temperatures: in the valve 2 to 130 °C, non-condensing
Weight: depend on type (see sections “Dimensions with DRxxGMLA (mm)” and “Dimensions with DRxxxGFLA (mm)” on page 3)
Flow characteristic :equal percentage

Terms & conditions :

This offer is valid until stocks last or till the offer ends. Final Price is inclusive of the offer. Offer is applicable on select products and brands. In the event the user returns any/all products in the order placed during the Offer Period, thereby not maintaining the minimum purchase value, as required to avail the Offer, he/she shall not be eligible for the Offer. Accordingly, the amount availed as a discount under the Offer shall stand deducted from any refund(s) processed for the returned product(s).
Tags : , , ,

Related Products

Turo Vortex Pumps

Turo Vortex Pumps

Advance Balancing Valve Flange End

Advance Balancing Valve Flange End

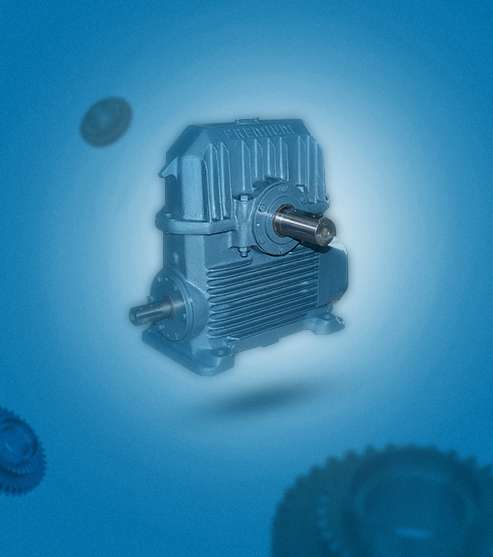

Standard Worm Gearbox

Standard Worm Gearbox

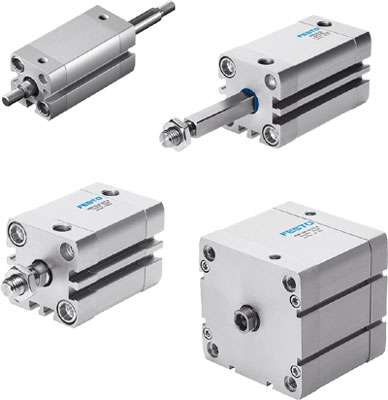

Festo Compact Pneumatic Cylinder
