Honeywell Damper Actuator

Enquire Now

Description:

Fast-acting, two-position actuator with 80 lb-in., spring return

Honeywell’s Fast-Acting, Two-Position Actuators are line volt (230V), 80 lb-in., spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Description
HONEYWELL-MS4609F1010 FIRE AND SMOKE DIRECT COUPLED 6965 ACTUATOR, 9 NM, 230 VAC|UL 555 S RATED FIRE & SMOKE DAMPER ACTUATORS
Honeywell’s Fast-Acting, Two-Position Actuators are line volt (230V), 80 lb-in., spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Product Specifications MS4609F1010
Application: Fire and Smoke
Dimensions (in.): 8.9 in high x 5.13 in wide x 3.32 in deep
Dimensions (mm): 227 mm high x 129 mm wide x 84 mm deep
Weight (lb):5 lb
Weight (kg):2.3 kg
Materials:Aluminum housing
Comments:Two integral 3/8 in. clip-in flexible conduit connections
Item Type:Product
Mounting:Direct Coupled
Frequency:50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL873, Plenum Rated (if product marked)
Electrical Connections: Color-coded leads
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Supply Voltage: 230 Vac ±10%
Power Consumption:Driving– 0.13A, 23W, Holding– 0.09A, 7W
Shipping and Storage Temperature Range (F): -40 F to 140 F
Shipping and Storage Temperature Range (C): -40 C to +60 C
Approvals, Canadian Underwriters Laboratories Inc.: cUL C22.2 No. 24-93 (if product marked)
Ambient Temperature Range (F): 0 F to +130 F
Ambient Temperature Range (C):-18 C to +55 C
Approvals, C-Tick: N314
Environmental, Electrical or Ingress Protection Rating: NEMA 1, IP40
Internal Auxiliary Switch:0
Maximum Noise Rating: Driving (dB(A) @ 1m)– 80; Holding (dB(A) @ 1m)– 20 (no audible noise)
Stroke:95 ±3 degrees
Shaft Dimensions (in.): 1/2 in. round
Actuator Type:Damper
Control Signal: Two position; SPST
Fail Safe Mode:Spring Return
Torque Rating (lb-in.):80 lb-in.
Torque Rating (Nm):9 Nm
Spring Return Torque/Force (lb-in., lbf):80 lb-in.
Spring Return Torque/Force (Nm, N):9 Nm
Additional Torque Ratings (lb-in.):Maximum Stall– 240 lb-in.; Minimum Driving at 350 F– 80 lb-in.
Additional Torque Ratings (Nm):Maximum Stall– 27 Nm; Minimum Driving at 175 C– 9 Nm

Terms & conditions :

This offer is valid until stocks last or till the offer ends. Final Price is inclusive of the offer. Offer is applicable on select products and brands. In the event the user returns any/all products in the order placed during the Offer Period, thereby not maintaining the minimum purchase value, as required to avail the Offer, he/she shall not be eligible for the Offer. Accordingly, the amount availed as a discount under the Offer shall stand deducted from any refund(s) processed for the returned product(s).
Tags : , ,

Related Products

Honeywell 2 WAY BALL CONTROL VALVE

Honeywell 2 WAY BALL CONTROL VALVE

Pressure Gauge All Companies

Pressure Gauge All Companies

INR 25997.00

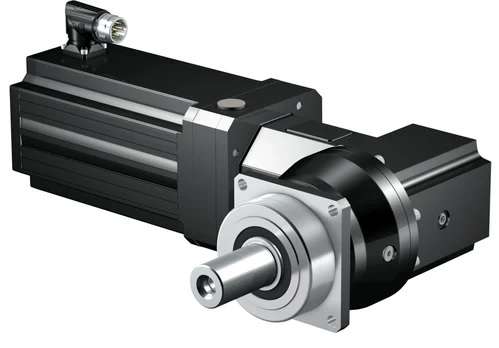

Stober Planetary Gear Units

Stober Planetary Gear Units

INR 15000.00

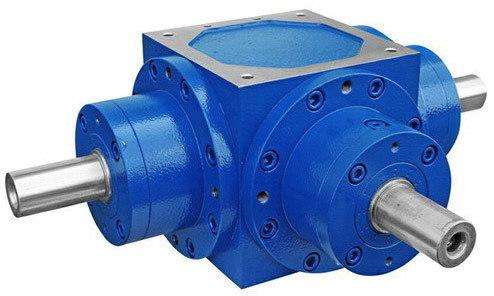

Gearbox Repair Services
